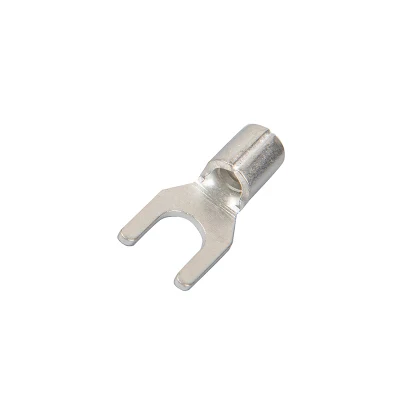

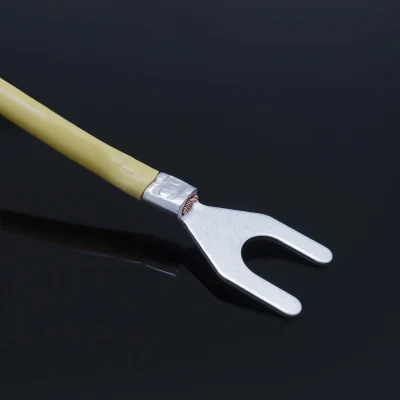

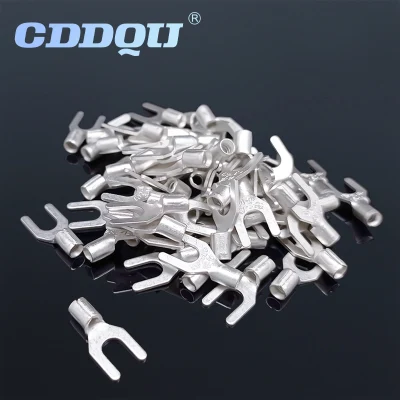

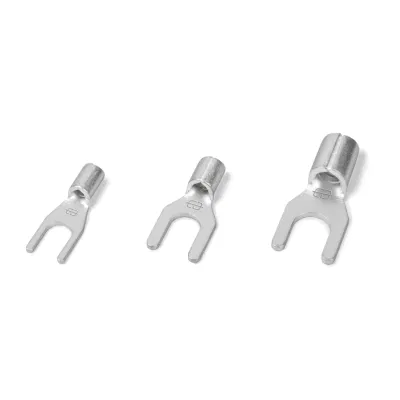

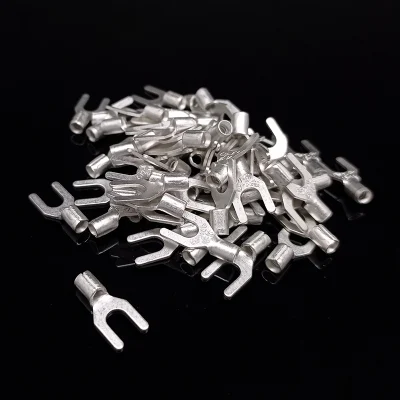

Non Insulated Spade Terminal Electrical Wire Naked Fork Crimp Connector Use for Stud AWG22-10 with U Tape

Non Insulated Spade Terminal Electrical Wire Naked Fork Crimp Connector Use for Stud AWG22-10 with U Tape. We are a factory specializing in electrical wire crimp connectors.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Application Scenario
  • Main Products
  • Company Profile
  • Certifications
  • Packaging & Shipping
  • FAQ
Overview

Basic Info.

Shape
U
Interface Type
Spade
Certification
UL
Brand
Cddqlj
Product Name
Naked Fork Terminal
Surface Treatment
Tin-Plated
a.W.G
22-16/16-14/14-12/12-10/8
Wire Range
0.5-1.5mm2, 1.5-2.5mm, 2.5-4mm, 4-6mm, 4-10mm
Transport Package
1000PCS/Bag
Trademark
CDDQLJ
Origin
Zhejiang
Production Capacity
1000000000

Product Description

Product Description

Non Insulated Spade Terminal Electrical Wire Naked Fork Crimp Connector Use for Stud AWG22-10 with U Tape

Non Insulated Spade Terminal Electrical Wire Naked Fork Crimp Connector Use for Stud AWG22-10 with U Tape
1, Made of copper, good electrical conductivity
2. Surface pickling is not easy to oxidize
2, Easy crimping, safe and reliable, stable wiring
3. Anti-corrosion and anti-rust of screws, pickling treatment
4. Used in household electrical appliances, automotive electrical appliances, factory workshops, distribution cabinets.
Non Insulated Spade Terminal Electrical Wire Naked Fork Crimp Connector Use for Stud AWG22-10 with U Tape
Non Insulated Spade Terminal Electrical Wire Naked Fork Crimp Connector Use for Stud AWG22-10 with U Tape

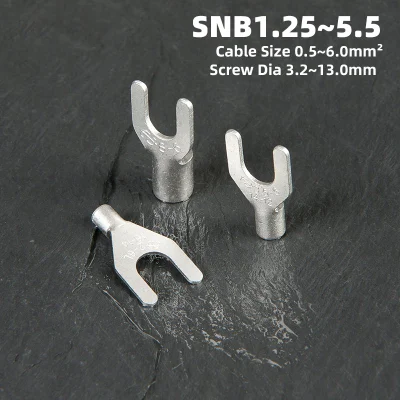

Non-Insulated Spade Terminal
Cable size : 0.5~1.5mm²(A.W.G.22~16) Imax=19A
Material: Copper Thickness:0.75mm
ITEM NO Dimension  (mm) A.W.G. Screw dia.
B L F H d D
SNB 1.25-3 5.7 16.0 6.5 4.8 1.7 3.4 4 3.2
SNBS 1.25-3.5 5.7 16.0 6.5 4.8 1.7 3.4 6 3.7
SNBL 1.25-3.5 6.4 16.0 6.5 4.8 1.7 3.4 6 3.7
SNBM 1.25-4 6.4 16.0 6.5 4.8 1.7 3.4 8 4.3
SNBL 1.25-4 7.2 16.0 6.5 4.8 1.7 3.4 8 4.3
SNBS 1.25-5 8.1 16.0 6.5 4.8 1.7 3.4 10 5.3
SNBL 1.25-5 9.5 16.0 6.5 4.8 1.7 3.4 10 5.3
SNBS 1.25-6 9.5 16.0 6.5 4.8 1.7 3.4 1/4 6.4
SNBL 1.25-6 12.0 22.0 11.0 4.8 1.7 3.4 1/4 6.4
Cable size:1.5~2.5mm²(A.W.G.16~14) Imax=27A Thickness:0.8mm
SNB 2-3 5.7 16.0 6.5 4.8 2.3 4.1 4 3.2
SNBS 2-3.5 5.7 16.0 6.5 4.8 2.3 4.1 6 3.7
SNBL 2-3.5 6.4 16.0 6.5 4.8 2.3 4.1 6 3.7
SNBS 2-4 6.4 16.0 6.5 4.8 2.3 4.1 8 4.3
SNBM 2-4 7.2 16.0 6.5 4.8 2.3 4.1 8 4.3
SNBL 2-4 8.1 16.0 6.5 4.8 2.3 4.1 8 4.3
SNBS 2-5 8.1 16.0 6.5 4.8 2.3 4.1 10 5.3
SNBL 2-5 9.5 16.0 6.5 4.8 2.3 4.1 10 5.3
SNBS 2-6 9.5 16.0 6.5 4.8 2.3 4.1 1/4 6.4
SNBL 2-6 12.0 22.0 11.0 4.8 2.3 4.1 1/4 6.4
Cable size:2.5~4mm²(A.W.G.14~12) Imax=37A Thickness:1.0mm
SNB 3.5-3 5.7 18.3 7.0 6.0 3.0 5.0 4 3.2
SNB 3.5-4 8.0 18.3 7.0 6.0 3.0 5.0 8 4.3
SNB 3.5-5 8.0 18.3 7.0 6.0 3.0 5.0 10 5.3
SNB 3.5-6 12.0 21.5 12.1 6.0 3.0 5.0 1/4 6.4
Cable size:4~6mm²(A.W.G.12~10) Imax=48A Thickness:1.0mm
SNB 5.5-3.5 7.1 18.0 7.5 6.8 3.4 5.4 6 3.7
SNBS 5.5-4 8.3 19.5 7.5 6.8 3.4 5.4 8 4.3
SNBL 5.5-4 9.0 19.5 7.5 6.8 3.4 5.4 8 4.3
SNB 5.5-5 9.0 19.5 7.5 6.8 3.4 5.4 10 5.3
SNBS 5.5-6 9.0 19.5 7.5 6.8 3.4 5.4 1/4 6.4
SNBL 5.5-6 12.0 25.5 12.0 6.8 3.4 5.4 1/4 6.4
SNB 5.5-8 14.0 24.5 11.5 6.8 3.4 5.4 5/16 8.4
Cable size:6~10mm²(A.W.G.8) Imax=62A Thickness:1.2mm
SNB 8-4 8.7 23.0 6.0 8.5 4.5 7.2 8 4.3
SNB 8-5 12.0 24.5 5.7 8.5 4.5 7.2 10 5.3
SNB 8-6 12.0 24.5 5.7 8.5 4.5 7.2 1/4 6.4
SNB 8-8 14.5 24.5 0.3 8.5 4.5 7.2 5/16 8.4

Application Scenario

Non Insulated Spade Terminal Electrical Wire Naked Fork Crimp Connector Use for Stud AWG22-10 with U Tape


Main Products
Non Insulated Spade Terminal Electrical Wire Naked Fork Crimp Connector Use for Stud AWG22-10 with U Tape Non Insulated Spade Terminal Electrical Wire Naked Fork Crimp Connector Use for Stud AWG22-10 with U Tape  Click on this link to view more products!

Company Profile

Non Insulated Spade Terminal Electrical Wire Naked Fork Crimp Connector Use for Stud AWG22-10 with U Tape

       With reference to the technical standards and quality requirements of advanced industrial countries, the company takes customer demand as the center, safety, environmental protection, high efficiency and stability as the concept, quality as life, scientific and technological innovation, and provides high-quality products and supporting services for various industries such as electric power, communication equipment, automobile manufacturing. After years of development, the company has obtained the IS0 9001, CE, RoHS.
Non Insulated Spade Terminal Electrical Wire Naked Fork Crimp Connector Use for Stud AWG22-10 with U Tape
Non Insulated Spade Terminal Electrical Wire Naked Fork Crimp Connector Use for Stud AWG22-10 with U Tape
  The products are exported to the European Union, North America, Russia, Australia, South America, Middle East, while creating wealth, the company has also won the majority of users Recognition and trust. In particular, the company's Cord End Terminal, Crimping Terminal and other products have a good reputation in users and industry.
Certifications

Non Insulated Spade Terminal Electrical Wire Naked Fork Crimp Connector Use for Stud AWG22-10 with U Tape

Packaging & Shipping

Non Insulated Spade Terminal Electrical Wire Naked Fork Crimp Connector Use for Stud AWG22-10 with U Tape

FAQ

Q1: Are you a factory?

We are a manufacturer, we have nearly 20 years of experience in the field of terminals and connectors, and have been providing high-quality products and services for domestic and foreign companies.

Q2;What are the advantages of your products compared with other competitor?

Quality is the most important factor that makes us stand out in the competition of our peers. In the whole production process, we use 6S standardized management to implement strict quality control, and strictly control all raw materials, production links and products, so in most cases, it is not difficult to distinguish us from competitors in terms of technology

Q3:How long is the delivery time?

We have samples and stock for most products. If the quantity is small, we promise to deliver within 3 days. If the quantity is large, we will arrange the delivery time according to the production cycle.

Q4:How can we get the samples?Is it free?

A:We provide free samples by express, but you need pay the express charge.

Q5:Which shipping method do you provide?

A:If there are few samples or products, the goods will be sent by express delivery. Orders with large quantity or regular delivery can be sent by air or sea according to your needs.

Q6:What is MOQ?

A:No limit.

Q7:What kind of payment do you accept?

A:Generally, we accept T/T 30% in advance, 70% balance before shipment. We also accept Paypal, Western Union and MoneyGram for small orders.

Q8:Do you have a catalogue? Can you send me the catalogue to have a check of all your products?

A:Yes,can contact us on line or send an Email to get catalogue.

Q9:I need your price list of all your products, do you have a price list?

A:We do not have a price list of all of our products. Because we have so many items and the price are always changing because of the material cost and quantity.And you can give us a list for all of the item you needed,we will confirm carefully one by one,and give you specification and price list.

Q10:Can you make customized products and customized packing?

A:Yes. We made a lot of customized products for our customer before. About customized packing, There is no problem forwe put your Logo or other info on the packing Just have to point out that,it will cause some additional cost.
