PRODUCTS DETAILS

Basic Info.

Model NO.
HF-SV series
Character
Environmental Protection
Species
Terminal
Production Process
Cold Pressing
Shape
U, Round, Spade etc
Interface Type
AC/DC
Certification
RoHS, Reach
Brand
Hf
Insulation
PVC
Wire Range
0.5-1.5mm 1.5-2.5mm 2.5-4mm 4-6mm etc
Certificate
CE, RoHS
Standard
ISO9001, ISO14001
Connection
Crimp Type
Surface Treatment
Coated Tin
MOQ
1bag
Packing
500 or 1000 PCS Into Bags
Sample
Free
Delivery Time
7-30 Days Upon Order Quantities
OEM/ODM
Welcome
Color
Red, Blue, Black, Yellow etc
Usage
Connecting Cable Wire
Stud Size/USA Screw
#4 to 1/2
Screw Diameter
3.2mm to 13mm etc
Transport Package
Inner Plastic Bag, Export Carton with Pallets
Specification
RV1.25-3.2 to RV1.25-12
Trademark
High Fun
Origin
Wenzhou, China
HS Code
8536909000
Production Capacity
10000000PCS/Month

Packaging & Delivery

Package Size
13.50cm * 10.00cm * 8.00cm
Package Gross Weight
1.500kg

Product Description

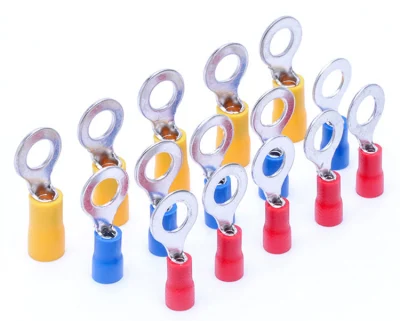

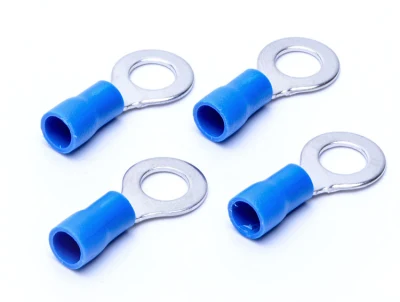

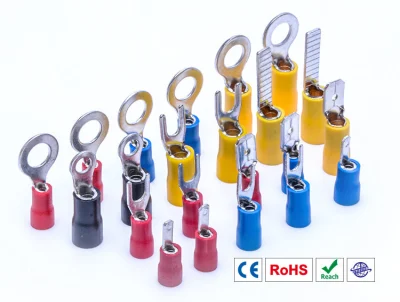

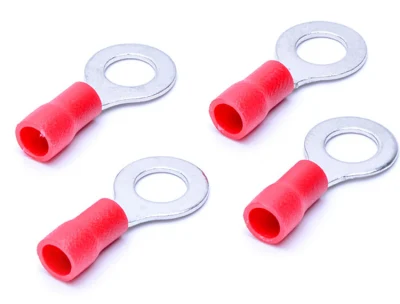

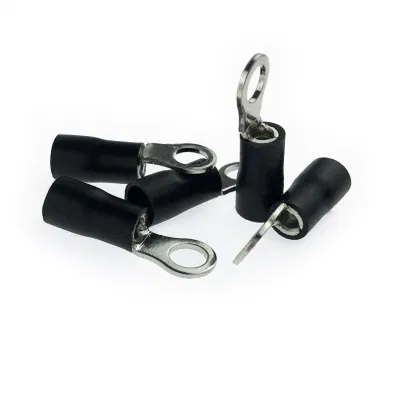

Brass Copper Electrical /Electric Spade Crimp Terminal lugs Connector Cable Wire Lug Connector Insulated Ring terminals
Brass Copper Electrical /Electric Pin/Blade/Tube/Female/Male/ Fork Spade Crimp Terminal Lugs Cable Butt Ferrules Wire Lug Cord End Pre Insulated Ring Terminals
Maximum current:Imax = 19A Material thickness:0.75mm

item NO

USA screw

Screw dia
Dimension(mm)
Color

B
L
F
H
D
RV1.25-3.2
#4
3.2
5.7
17.8
4.95









10.0









4.3









Red or others
RVS1.25-3.5
#6
3.7
5.7
17.8
4.95
RVM1.25-3.5
#6
3.7
6.6
20.1
6.3
RVL1.25-3.5
#6
4.3
8.0
21.5
7.0
RVS1.25-4
#8
4.3
6.6
20.1
6.3
RVL1.25-4
#8
4.3
8.0
21.5
7.0
RVS1.25-5
#10
5.3
8.0
21.5
7.0
RVL1.25-5
#10
5.3
9.8
23.0
8.5
RV1.25-6
1/4
6.4
11.6
27.5
11.1
RV1.25-8
5/16
8.4
11.6
27.5
11.1
RV1.25-10
3/8
10.5
13.6
31.6
13.9
RV1.25-12
1/2
13.0
19.2
36.0
16.5
Brass Copper Electrical /Electric Pin/Blade/Tube/Female/Male/ Fork Spade Crimp Terminal Lugs Cable Butt Ferrules Wire Lug Cord End Pre Insulated Ring Terminals Brass Copper Electrical /Electric Pin/Blade/Tube/Female/Male/ Fork Spade Crimp Terminal Lugs Cable Butt Ferrules Wire Lug Cord End Pre Insulated Ring Terminals Brass Copper Electrical /Electric Pin/Blade/Tube/Female/Male/ Fork Spade Crimp Terminal Lugs Cable Butt Ferrules Wire Lug Cord End Pre Insulated Ring Terminals
Other type of insulated terminal specification.
Brass Copper Electrical /Electric Pin/Blade/Tube/Female/Male/ Fork Spade Crimp Terminal Lugs Cable Butt Ferrules Wire Lug Cord End Pre Insulated Ring Terminals Brass Copper Electrical /Electric Pin/Blade/Tube/Female/Male/ Fork Spade Crimp Terminal Lugs Cable Butt Ferrules Wire Lug Cord End Pre Insulated Ring Terminals Brass Copper Electrical /Electric Pin/Blade/Tube/Female/Male/ Fork Spade Crimp Terminal Lugs Cable Butt Ferrules Wire Lug Cord End Pre Insulated Ring Terminals Brass Copper Electrical /Electric Pin/Blade/Tube/Female/Male/ Fork Spade Crimp Terminal Lugs Cable Butt Ferrules Wire Lug Cord End Pre Insulated Ring Terminals
Terminal Usage Ranges:
Brass Copper Electrical /Electric Pin/Blade/Tube/Female/Male/ Fork Spade Crimp Terminal Lugs Cable Butt Ferrules Wire Lug Cord End Pre Insulated Ring Terminals
Packing of Terminals.
Brass Copper Electrical /Electric Pin/Blade/Tube/Female/Male/ Fork Spade Crimp Terminal Lugs Cable Butt Ferrules Wire Lug Cord End Pre Insulated Ring Terminals Factory Show:
Brass Copper Electrical /Electric Pin/Blade/Tube/Female/Male/ Fork Spade Crimp Terminal Lugs Cable Butt Ferrules Wire Lug Cord End Pre Insulated Ring Terminals Brass Copper Electrical /Electric Pin/Blade/Tube/Female/Male/ Fork Spade Crimp Terminal Lugs Cable Butt Ferrules Wire Lug Cord End Pre Insulated Ring Terminals
FQA
Q1: Could I Put My Own Logo On It?
A1: Sure, of course, we are a professional manufacturer and have over 10 years OEM experience, customer;s logo can be made by laser, engraved, embossed, transfer printing etc.

Q2: What's the delivery time?
A2: Normally, 7-20days after order and payment confirmation. Actually, it will depend on your order quantities

Q3: What's your terms of payment?
A3: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
For sample order or trial order, we accept 100% by T/T or western union or alipay or wechat etc.

Q4: How do you make our business long-term and good relationship?
A4: a. We keep good quality and competitice price to ensure our customers benefit; b. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

Q5: If we bought your products, but found quality problem, how to solve?
A5: After confirmed, if the quality problem is caused by us not for outer sector, we will compensate each piece to customer.

 Q6.How can we get the samples?Is it free?
A6:We provide free samples by express, but you need pay the express charges or make samples collection at your side by your DHL, UPS or Fedex/TNT freight Account.
