Heavy Duty Power Module Signal and Contact Male Female Tyco 75A 29pin Drawer Connector with Cable and Terminal

Get reliable Heavy Duty Power Module Signal and Contact Male Female Tyco 75A 29pin Drawer Connector with Cable and Terminal at our factory. High-quality and durable. Contact us now!
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Company Profile
Overview

Basic Info.

Model NO.
AFC-29T
Certification
CE
Terminal Material
Copper
Interface Type
AC/DC
Product Material
Pet
Rated Current
35A
Withstand Voltage
1500V/DC
Ambient Temperature
-55ºC~+125ºC
Rated Voltage
250V
Insulation Resistance
5000m&Omega
Pin Terminal Style
Crimping (Y), PCB Tail (B), Solder Cup(H)
Product Name
Uninterruptible Power Supply Connector
Transport Package
Inner Packaging
Specification
PET
Trademark
Anfick
Origin
China
Production Capacity
1000000

Packaging & Delivery

Package Size
8.00cm * 8.00cm * 6.00cm
Package Gross Weight
0.100kg

Product Description

35Amp power 75A signal mixed connector TE forge power drawer connector
35Amp power 75A signal mixed connector TE forge power drawer connector


Product Description




Operating Environment:
Operating Temperature -55 to + 125 oC
Relative Humidity 98% (40 oC)
Vibration 10 to 2,000Hz (a = 147m/s2)
Shock Acceleration 980m/s2



Main Technical Specifications:
Insulation Resistance ≥ 1,000MΩ
Mechanical Life 1,000 times
Housing Material PET G30 UL94V-0 Black
           Contact Spec. Signal Contact Power Contact
#20 #12
Quantity 21 8
Rated Current 5A 35A
Contact Resistance ≤5.0mΩ ≤1.0mΩ
Withstand Voltage 1,000V 1,500V
Surface Material Gold plated over nickel Silver plated over nickel
Terminal Style Crimping (Y), PCB Tail (B), Solder Cup(H)
Material Pin and Socket Brass or copper
Crown Spring Beryllium bronze

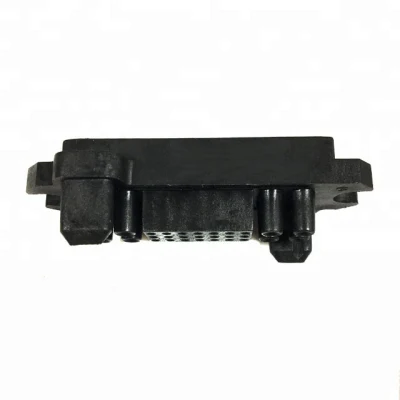

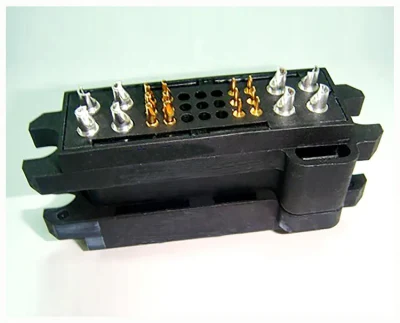

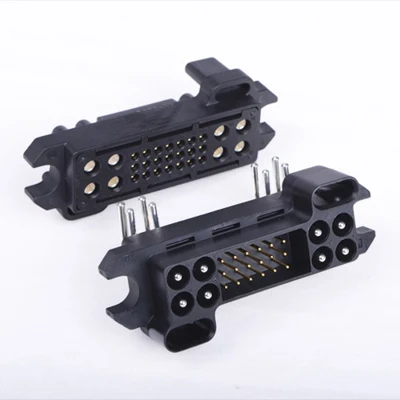

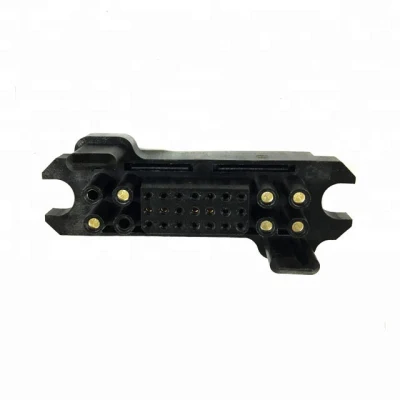

Heavy Duty Power Module Signal and Contact Male Female Tyco 75A 29pin Drawer Connector with Cable and Terminal Heavy Duty Power Module Signal and Contact Male Female Tyco 75A 29pin Drawer Connector with Cable and Terminal Heavy Duty Power Module Signal and Contact Male Female Tyco 75A 29pin Drawer Connector with Cable and Terminal


Heavy Duty Power Module Signal and Contact Male Female Tyco 75A 29pin Drawer Connector with Cable and Terminal Heavy Duty Power Module Signal and Contact Male Female Tyco 75A 29pin Drawer Connector with Cable and Terminal
Heavy Duty Power Module Signal and Contact Male Female Tyco 75A 29pin Drawer Connector with Cable and Terminal

Application:

1. Intelligence high frequency switching power supply: Communication data center, electric power, railway power supply, solar photovoltaic power, Electric drive and charging equipment, industrial power, medical beauty equipment.
2. Intelligence high frequency switching power supply
3. UPS Uninterruptible Power Supply
4. Contravariant power,solar inverter,battery charging
5. Drawer low-voltage cabinet etc.
6Food and Beverage Distribution,Transmission & Distribution


Company Profile




Shenzhen Anfick  Connector Technology Co.,Ltd ,with more than 40 employees,4 CNC lines,5 assembly lines,we are professional electrionic manufacturing supplier in Shenzhen,China
Anfick covers an area of more than 4000 square meters,we have achieved the ISO9001 :2000,ISO14001 :2015,ROHS,CE,UL,certifications.
Our  Connector embly continue to meets and exceeds customer's expectations,such as quality,delivery,service of sales...etc.
Resulting from the corporation culture of honesty,partnership,creativeness,quality excellence,and superior services.
The corporation mission is ' Quality first,Custmomer Satisfaction,Innovation and Advance',in the road of future,Anfick mould connector(ups connector) is committed to our customers' growth and success,more opportunities,more benifits,more reliability.
Our research and development  center for  UPS(Uninterruptible Power Supply ) ,that most of our engineers have done many years and most work experience,such as intelligent  hardware,communications,industrial design.
Heavy Duty Power Module Signal and Contact Male Female Tyco 75A 29pin Drawer Connector with Cable and Terminal Heavy Duty Power Module Signal and Contact Male Female Tyco 75A 29pin Drawer Connector with Cable and Terminal
Our exhibition:
Heavy Duty Power Module Signal and Contact Male Female Tyco 75A 29pin Drawer Connector with Cable and Terminal


Packing and Shipping:
Heavy Duty Power Module Signal and Contact Male Female Tyco 75A 29pin Drawer Connector with Cable and Terminal
Heavy Duty Power Module Signal and Contact Male Female Tyco 75A 29pin Drawer Connector with Cable and Terminal

FAQ:

1. Please be noted that the price in our website is merely the reference price and the actual one is subject to our final confirmation!
2. Any problem, requirement and suggestion, please contact us freely, we'd be very pleased to be at your side.
Q1: Are you a factory or trade company
A:Yes,we are the factory,we have our own connector manufacturer and assembly factory


Q2: How long is your delivery time?
A: Generally it is 3 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q3. How often does your company update the product ?
A: We never ever stop developing new products. We will design a new product according to the market demand.

Q4. Can I place sample order for testing before placing regular order?
A: Yes, trial order is acceptable.

Q5. What payment methods your company accepts?
A: We accept T/T (Bank Transfer), Paypal , Western Union, Cash, L/C etc...
Q6. How about your after-service?
A: We offer 12 months warranty for all products.

About order
Q. Is there a minimum order amount?
A. We don't request MOQ for trial order.
Delivery time:
Q.How about your delivery time?
A: 3 working days after accepting the full payment when the goods in stock.
5-12 working days when the goods out of stock.

Customer Service
Q. What kind of service your company offer?
A:
OEM Service
We can offer our customers OEM service including laser customer's logo on the products
After- service
We promise that we will offer you really after-service, only if our product's issues! Best after-service will be provided by our own professional sales team and after-service team.

Personalized Service
If you have any idea of the products or want to made your special products, welcome dream team! We have our own developing and designing team, which ensure our own technological and innovative products for customers. We will help you realize your dreams.

Transportation Service
We directly cooperate with DHL, you can get goods faster and save your shipping cost.
Other optional express: FedEx,UPS,EMS.
If the quantity is large, we can also transport the goods to you by sea.

We also have other models too if you have interest and you can contact us for more models.
