Basic Info.
Model NO.
FLDNY
Shape
Rectangular
Interface Type
AC/DC
Certification
Ce
Brand
Mogen
Wire Range
0.5mm2-6mm2
I Max
10A 15A 24A
Color
Red Blue Yellow
Transport Package
Bag Box Paper
Specification
FLDNY
Trademark
MG
Origin
Cn
HS Code
8536900000
Production Capacity
5000, 000PCS/Year
Product Description

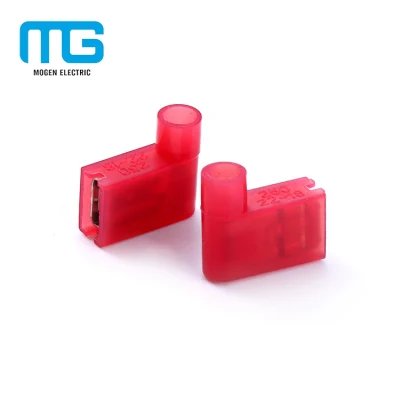

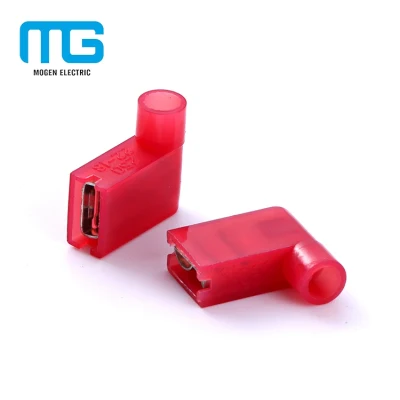

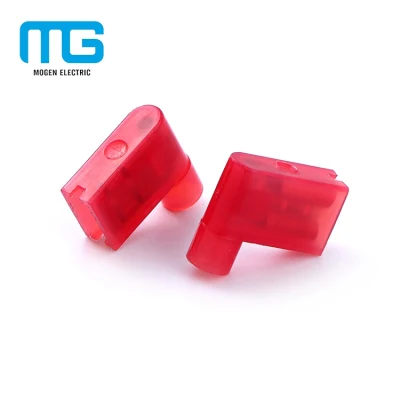

Flag Shape Female Insulated Terminal
Product description
Size: Flag Shape Female Insulated Terminal
Type: Pin
Terminal body: Brass
Finish: Tin plated
Insulation: Nylon
Standard: CE ROHS TUV SGS CQC
Packaging detail: 1000pcs per polybag, each bag per paper box
Fob port shanghai/ningbo
Related products
Company information
Product description
Size: Flag Shape Female Insulated Terminal
Type: Pin
Terminal body: Brass
Finish: Tin plated
Insulation: Nylon
Standard: CE ROHS TUV SGS CQC
Packaging detail: 1000pcs per polybag, each bag per paper box
Fob port shanghai/ningbo
| ITEM NO. | Connect | Dimension(mm) | A.W.G | IMAX CURRENCE | COLOR | |||
| Specifcation | W | F | L | dΦ | mm2 | |||
| FLDNY1.25-187 | 0.5×4.75 | 5 | 7 | 15 | 1.7 | 22-16A.W.G | 10A | RED |
| 0.5-1.5mm2 | ||||||||
| FLDNY1.25-250 | 0.8×6.35 | 6.6 | 7.6 | 16 | 17 | 22-18A.W.G | 10A | RED |
| 0.5-1.5mm2 | ||||||||
| FLDNY2-187 | 0.5×4.75 | 5 | 7 | 15.2 | 2.3 | 16-14A.W.G | 15A | BLUE |
| 1.5-2.5mm2 | ||||||||
| FLDNY2-250 | 0.8×6.35 | 6.6 | 7.6 | 16 | 17 | 16-14A.W.G | 15A | BLUE |
| 1.5-2.5mm2 | ||||||||
| FLDNY5.5-250 | 0.8×6.35 | 6.6 | 7.6 | 16 | 17 | 12-10A.W.G | 24A | YELLOW |
| 4-6mm2 | ||||||||
